Li-ion Chargers 48V
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <3A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 06 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 198mm |
| WEIGHT (Unpacked) | Max. 1.7 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <4A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 08 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50oC |
| Storage - 20oC to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <5A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 10 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |

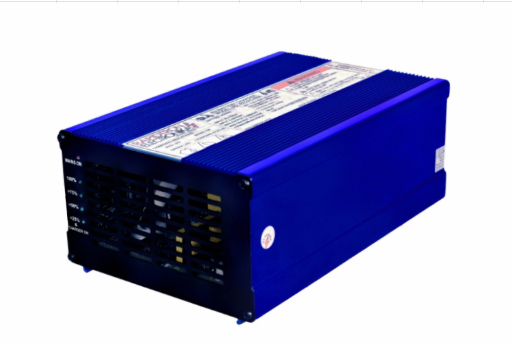

| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <6A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 12 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <4.5A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 15 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 242mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <5.5A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 18 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 242mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <6A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 20 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 242mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <7.5A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 25 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <9A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 30 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <12A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 40 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <15A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 58.4V/58.8V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 48V DC |
| OUTPUT CURRENT | 50 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
Li-ion Chargers 60V
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <3.3A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 69.3V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 06 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 198mm |
| WEIGHT (Unpacked) | Max. 1.7 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <4.7A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 69.3V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 08 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50oC |
| Storage - 20oC to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <5.5A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 69.3V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 10 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <7A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 69.3V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 12 Amp ± 0.3 A |
| RIPPLE | < 600mV. at Nominal Input |
| NOISE | < 1200mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 223mm |
| WEIGHT (Unpacked) | Max. 2.2 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <5.3A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 15 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <6.4A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.3V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 18 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <7A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 20 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <9A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 25 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <10.4A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 30 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <14.3A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 67.2V/69.3V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 60V DC |
| OUTPUT CURRENT | 40 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
Li-ion Chargers 72V
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <4.2A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 83.95V DC ± 0.30V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 06 Amp ± 0.3 A |
| RIPPLE | < 900mV. at Nominal Input |
| NOISE | < 1800mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 238mm (Tentative) |
| WEIGHT (Unpacked) | Max. 2.5 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <5.7A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 83.95V DC ± 0.30V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 08 Amp ± 0.3 A |
| RIPPLE | < 900mV. at Nominal Input |
| NOISE | < 1800mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 238mm (Tentative) |
| WEIGHT (Unpacked) | Max. 2.5 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <6A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 83.95V DC ± 0.30V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 10 Amp ± 0.3 A |
| RIPPLE | < 900mV. at Nominal Input |
| NOISE | < 1800mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 238mm (Tentative) |
| WEIGHT (Unpacked) | Max. 2.5 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <8.5A @ 230VAC, FULL LOAD |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 83.95V DC ± 0.30V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 12 Amp ± 0.3 A |
| RIPPLE | < 900mV. at Nominal Input |
| NOISE | < 1800mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 126mm, H = 81mm, L = 238mm (Tentative) |
| WEIGHT (Unpacked) | Max. 2.5 Kg's |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <6.5A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 15 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <7.8A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 18 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <10.8A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 25 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <8.6A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 20 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 259mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <13A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 30 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
| AC INPUT | |
| INPUT VOLTAGE RANGE | 170V -300VAC |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT CURRENT | <15A @ 230VAC, FULL LOAD |
| POWER FACTOR CORRECTION | >0.99 |
| DC OUTPUT | |
| OUTPUT MAX VOLTAGE | 84V DC ± 0.2V (can be set as per customer requirement) |
| OUTPUT NOMINAL VOLTAGE | 72V DC |
| OUTPUT CURRENT | 35 Amp ± 0.3 A |
| RIPPLE | < 1000mV. at Nominal Input |
| NOISE | < 2000mV. Pk - Pk, at Nominal Input |
| PROTECTIONS | |
| OUTPUT OVERLOAD | Available |
| SHORT CIRCUIT PROTECTION | Available |
| OUTPUT OVER VOLTAGE | Available |
| BATTERY REVERSE | Available |
| OVER TEMPERATURE | Available |
| CHARGING SAFETY TIMER | Available |
| ENVIRONMENT | |
| TEMPERATURE | Operation Ambient 0⁰C to + 50⁰C |
| Storage - 20⁰C to + 75⁰C ambient | |
| INDICATIONS | |
| MAINS ON | Red LED ON |
| CHARGER ON/ CHARGING | 25% Green LED Blinking/Constant |
| CHARGINGCOMPLETE | ALL LED's On and Constant |
| ELECTRICAL WIRES | |
| AC INPUT CONNECTION | 3 pin AC plug with 3 core cable, 1.5 Meter length |
| DC OUTPUT | 2 core cable with 1.5 Meter length |
| MECHANICAL DETAILS | |
| DIMENSIONS | W = 153mm, H = 91mm, L = 283mm |
| WEIGHT (Unpacked) | Max. 3.0 Kg's (Approximately) |
| Communication (Optional) | CAN 2.0A (Standard 11-bit), CAN 2.0B (Extended 29-bit) |
